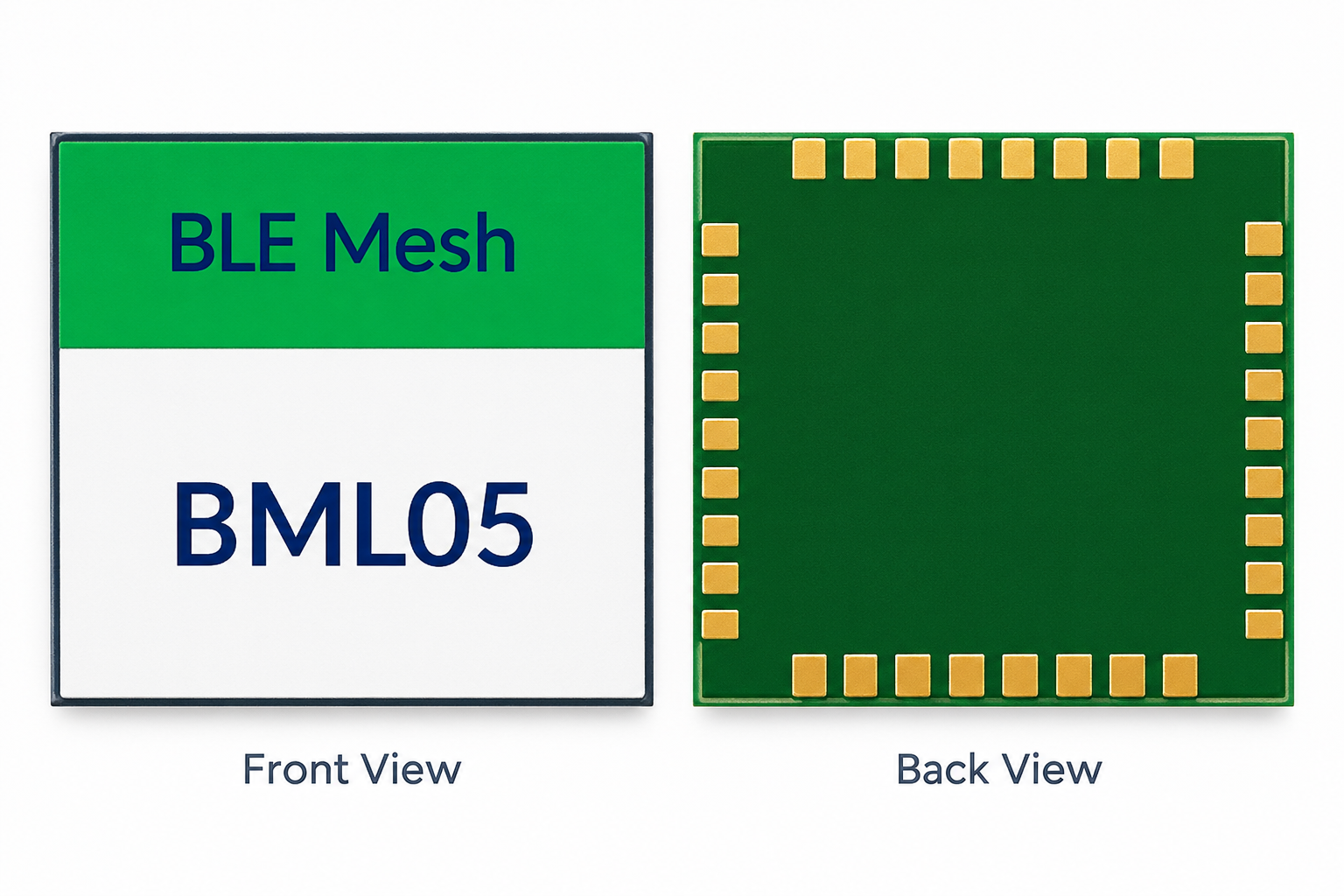

Product Details
Key Features
| No | Feature |
|---|---|
| 1. | ARM Cortex-M33 @ up to 128 MHz |
| 2. | BLE Mesh support |
| 3. | BLE Channel Sounding |
| 4. | NFC support |
| 5. | 16 × 16 mm compact form factor |
Target Applications
The BML05 BLE Mesh Module can be integrated into a variety of wireless control, sensing and IoT products, including:
- BLE Mesh LED Lighting - The BML05 can be used to develop BLE Mesh-connected lighting and electrical load devices such as LED lights, fans and motors.
- BLE Mesh Electrical Switches - The GPIO inputs can be used to develop wireless electrical switch devices connected to a BLE Mesh network.
- BLE Mesh ADC Sensor Nodes - The integrated ADC interface allows the module to be used in sensor nodes for acquiring analog sensor data.
- BLE Mesh I²C / SPI Sensors - The integrated I²C and SPI interfaces enable connection to external sensors and allow sensor data to be communicated over the BLE Mesh network.
- BLE Mesh Provisioner - The BML05 can work with a host MCU through an AT Command interface to manage and provision BLE Mesh node devices.
- BLE Mesh Data Aggregator - The module can interface with a host MCU through AT Commands and transmit sensor data through the BLE Mesh BLOB interface.

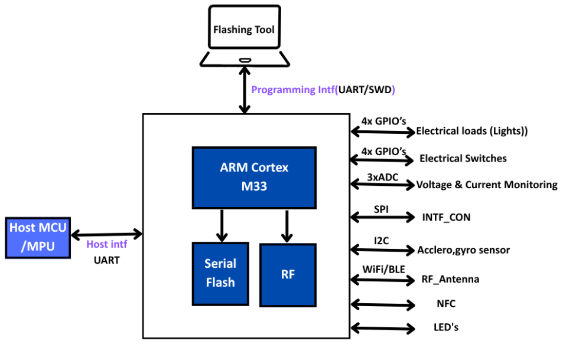

Block Diagram and Video
Specifications
| No | Parameter | Specification |
|---|---|---|
| 1. | CPU | ARM Cortex-M33 @ up to 128 MHz |
| 2. | SRAM | 192 KB |
| 3. | Internal Flash | 1 MB |
| 4. | Serial Flash | 16 MB QSPI Flash |
| 5. | Wireless | BLE Mesh |
| 6. | BLE Feature | Channel Sounding |
| 7. | NFC | Supported |
| 8. | Load Outputs | 4 × GPIO |
| 9. | Switch Inputs | 4 × GPIO |
| 10. | ADC | 1 × ADC sensor interface |
| 11. | SPI | 1 × SPI interface |
| 12. | I²C | 1 × I²C interface |
| 13. | Module Size | 16 × 16 mm |
Design & Development

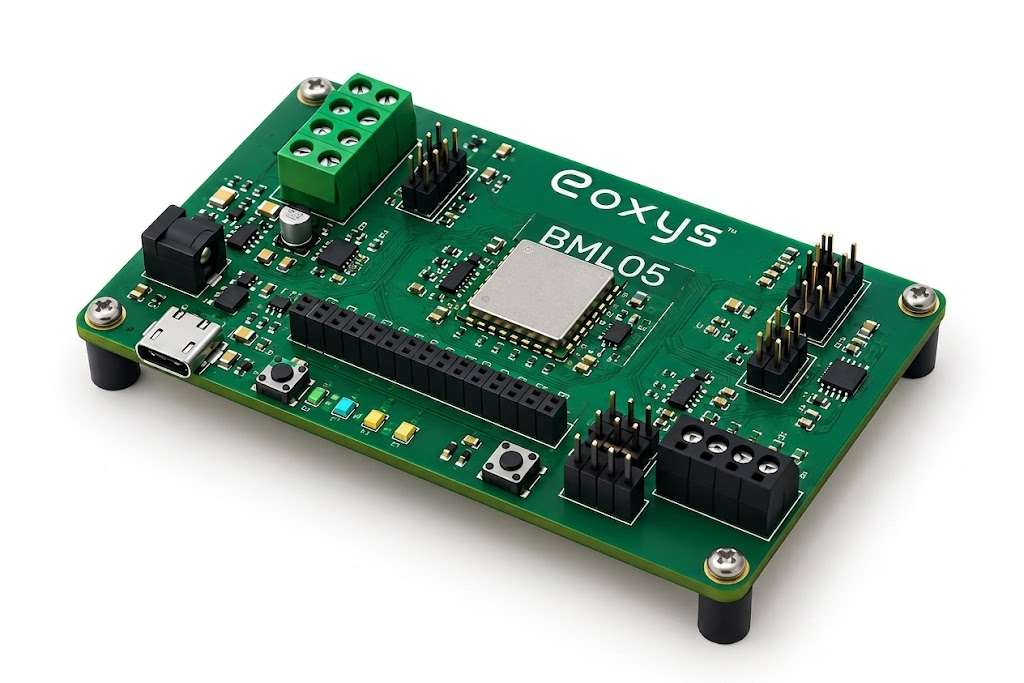

BML05 Design & Development
Detailed design resources, development information and supporting documentation for the BML05 BLE Mesh Module will be available here.
Coming Soon..
