The T600X - Multi-Wireless Module is a compact wireless connectivity module designed for next-generation IoT devices requiring multiple wireless communication technologies in a single device.

With support for Wi-Fi, Bluetooth Classic, Bluetooth Low Energy and IEEE 802.15.4, the T600X provides flexible wireless connectivity for a wide range of connected devices.

Built around a high-performance ARM Cortex-M33 processor, the module combines processing capability, DSP support and wireless connectivity in a compact 16 × 16 mm form factor. Its integrated memory resources and external QSPI Flash with XIP functionality enable the development of feature-rich embedded applications.

The T600X also supports Bluetooth Low Energy 6.0 with Channel Sounding, along with 802.15.4 Thread 1.4 and Zigbee 3.0, making it suitable for connected devices, wireless audio, sensing, control and IoT applications.

The module combines wireless connectivity, processing and DSP capabilities in a compact form factor, making it suitable for a variety of embedded wireless products.

ARM Cortex-M33 @ up to 240 MHz
DSP Features support
WiFi6 2.4GHz 11bgn
BT Classic and BLE6.0 with BLE Channel Sounding
IEEE 802.15.4 ZigBee 3.0 / Thread 1.4

Key Features

No	Feature
1.	ARM Cortex-M33 @ up to 240 MHz
2.	DSP Features support
3.	WiFi6 2.4GHz 11bgn
4.	BT Classic and BLE6.0 with BLE Channel Sounding
5.	IEEE 802.15.4 ZigBee 3.0 / Thread 1.4

Target Applications

The T600X Multi-Wireless Module can be integrated into a variety of wireless and IoT products, including:

Wi-Fi / Bluetooth Headsets - Designed for wireless audio products with noise suppression and DSP-based audio processing requirements.
Wireless Collar Microphones - Enables microphone data to be transferred wirelessly over Wi-Fi or Bluetooth while supporting noise suppression functionality.
Wi-Fi / Bluetooth Speakers - Suitable for connected speaker products with onboard microphones and speakers.
Wi-Fi VoIP Phones - Can be used to build VoIP phones with external I²C-based keypads, microphones and speakers.
Wireless Stethoscopes - Can be used to build wireless medical devices like stethoscopes using microphone and vibration sensors.
Wi-Fi Camera Connectivity - The module can be interfaced with a Linux MPU through SDIO to provide wireless transfer for applications such as camera data over Wi-Fi.

Block Diagram and Video

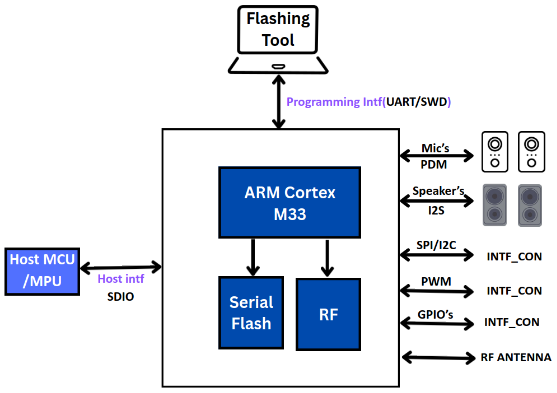

T600X Multi-Wireless Module Block Diagram

Specifications

No	Parameter	Specification
1.	CPU	ARM Cortex M33 @ 240MHz
2.	DSP Features	M33 core supports FPU (Floating Point Unit) for DSP algorithms, DSP extension instructions, and CMSIS DSP Library support.
3.	RAM	512 KB SRAM dedicated for M33, another 512 KB SRAM shared between M33 and Wireless RISC5 core.
4.	Flash	16MB QSPI Flash with XIP functionality
5.	WiFi	WiFi6 Certified 2.4GHz 11bgn (WiFi7 ready with MCS15 support)
6.	BT/BLE	BT Classic and BLE6.0. Supports Channel Sounding.
7.	IEEE 802.15.4	IEEE 802.15.4 based ZigBee 3.0 / Thread 1.4
8.	Module Size	16 × 16 mm

Design & Development

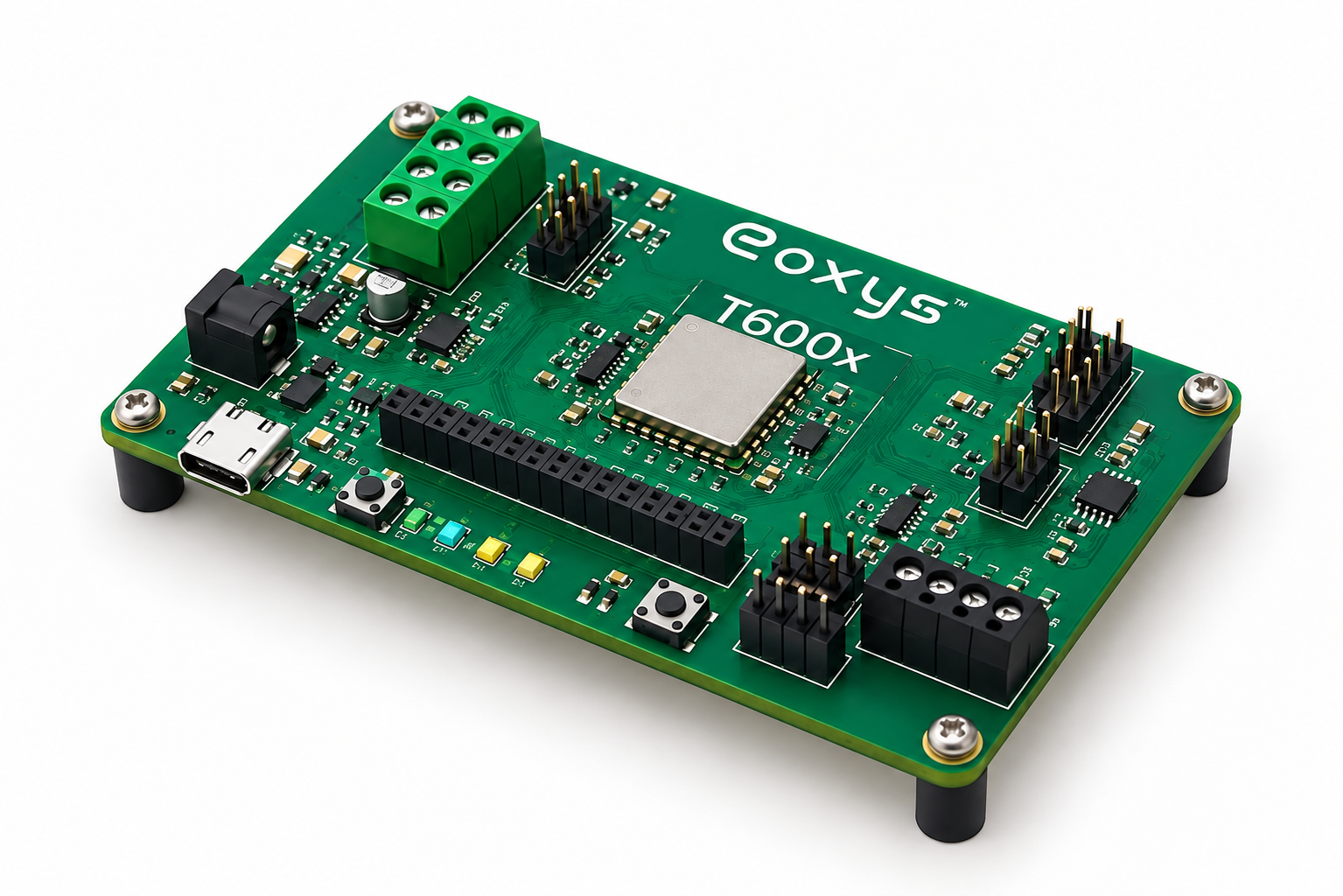

T600X Multi-Wireless Module Design and Development

T600X Design & Development

Our T600X design and development resources are currently being prepared to support product integration, hardware development and application development.

Detailed design resources, development documentation and supporting materials will be made available soon.

Coming Soon..

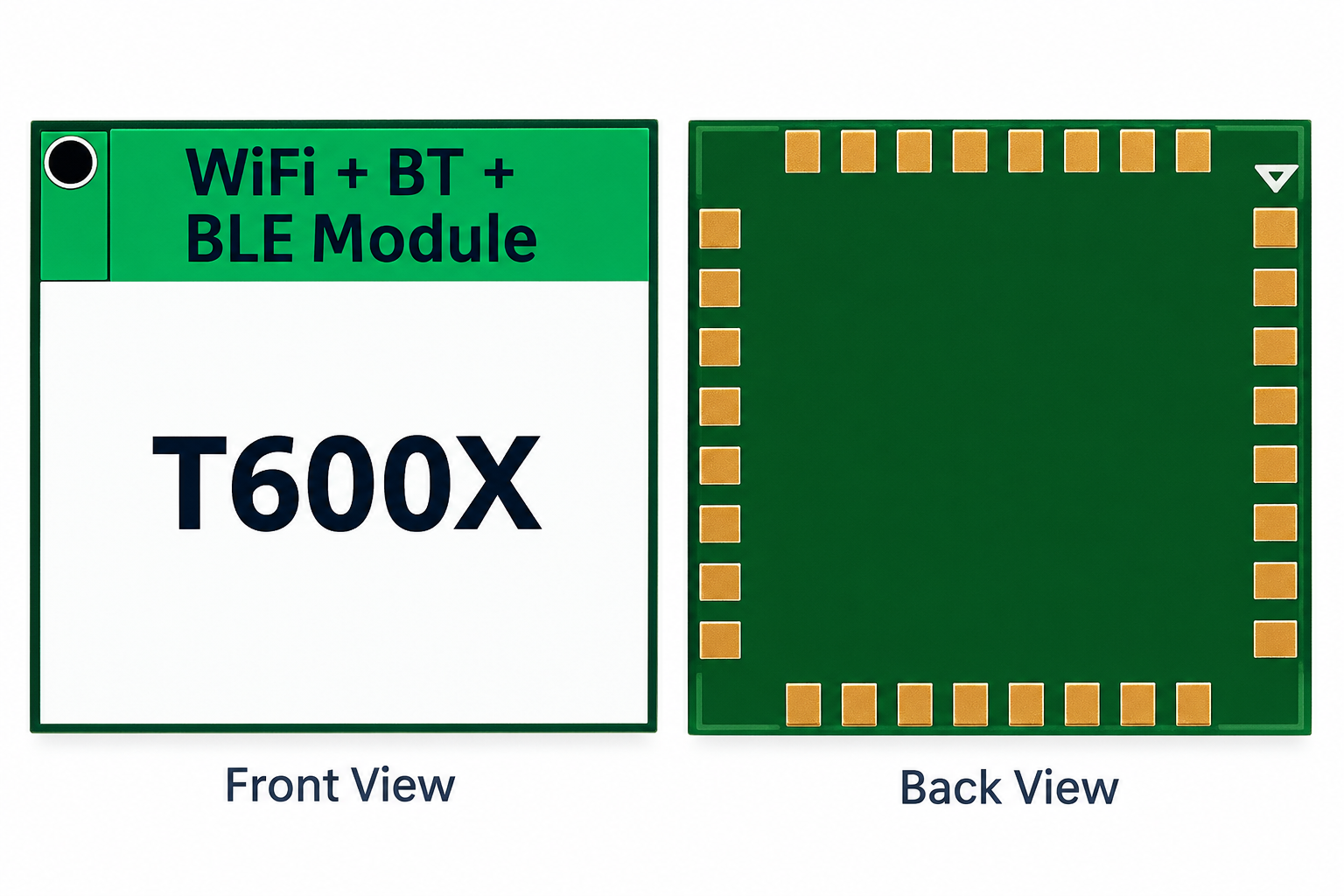

T600X Multi-Wireless Module
