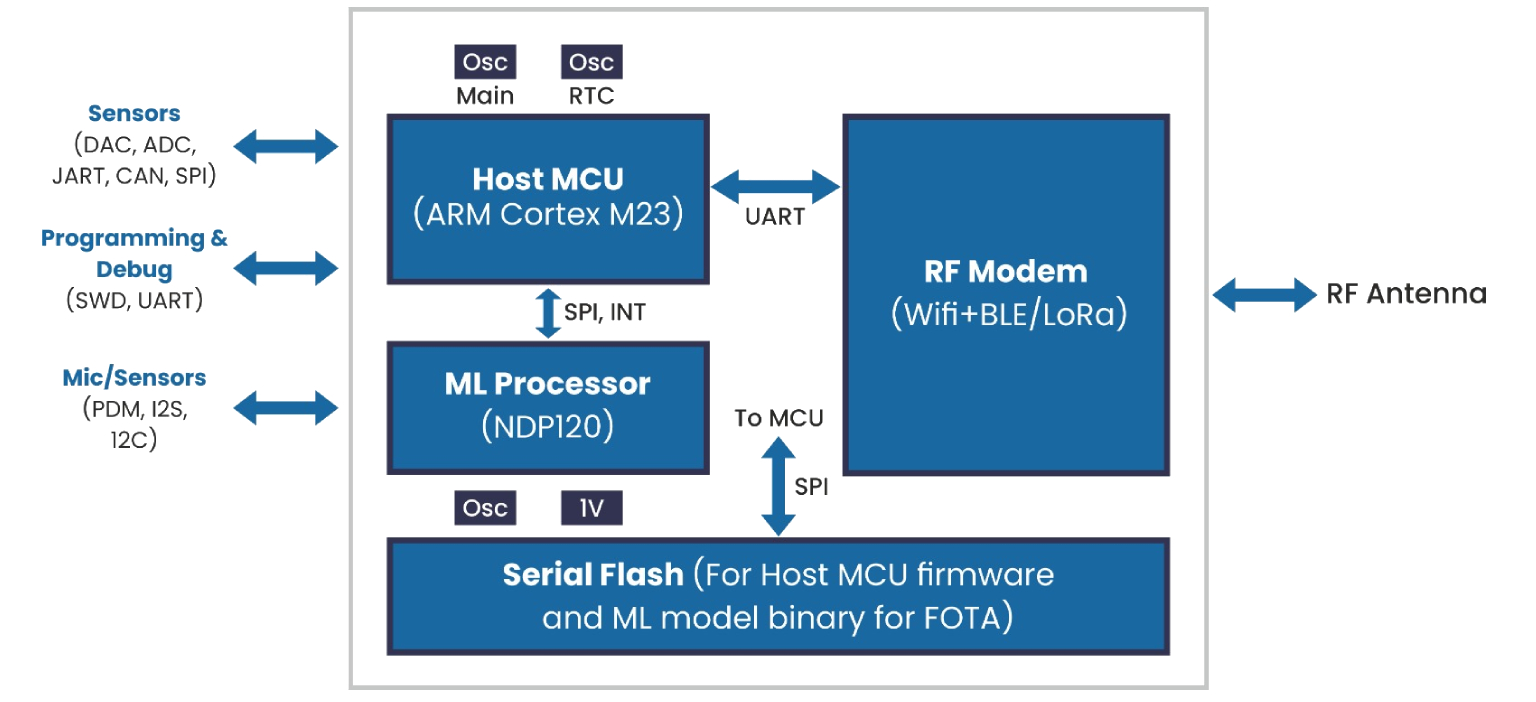

Block Diagram and Video
Specifications
The XENO+ ML SOM module is offered with following 2 variants of wireless connectivity in same PCB foot-print pin mappings:
- WiFi b/g/n and BLE5.0 connectivity modem with LR, 2M PHY and Extended advertising in single antenna for both WiFi and BLE.
- LoRa connectivity modem that is designed to LoRaWAN Class A/B/C protocol and 868/915 MHz frequency band, including EU868/US915/AU915/ AS923/KR920/IN865. The LoRa modem uses multi-mode high-performance SX126X chip that supports GFSK/FSK mode and LoRa mode. In LoRa mode, 62.5 kHz, 125 kHz, 250 kHz and 500 kHz bandwidth can be used
The common PCB foot-print pin mapping across above two XENO+ ML SOM modules brings HW and SW compatibility amoing those two connectivity variant devices.
The module has the smallest possible size with secure IoT MCU of Nuvoton ARM Cortex-M23 Trust Zone series MCU @ 96MHz, 1MB Flash, 256KB SRAM, UART/SPI/I2C ports and GPIOs. This module has 3 pin SWD pins for SW development and SW debug via Eclipse/KEIL IDE for Embedded SW development for the device by the users.
| No | XENO+ ML SOM | WiFi+BLE ML SOM | LoRa ML SOM |
|---|---|---|---|
| 1. | Part Number | WN100X-WBE | WN100X-LOR |
| 2. | Connectivity | Ultra-low power WiFi 2.4G b/g/n and BLE5.0 | LoRa WAN Class A/B/C protocol in 868/915 MHz bands |
| 3. | MCU | ARM Cortex-M23 @ 96MHz | |
| 4. | Memory | 1MB Flash, 256KB RAM, 8MB NOR Flash | |
| 5. | ML Processor | Core 2 ML Processor | |
| 6. | ML Applications | Runs multiple DNN applications up to 256 layers. | |
| 7. | OS | FreeRTOS | |
| 8. | Standby current | Very less (~55uA) | |
| 9. | FOTA | Host MCU firmware and ML model files | |
| 10. | Size | 26 x 32 x 5 mm | |

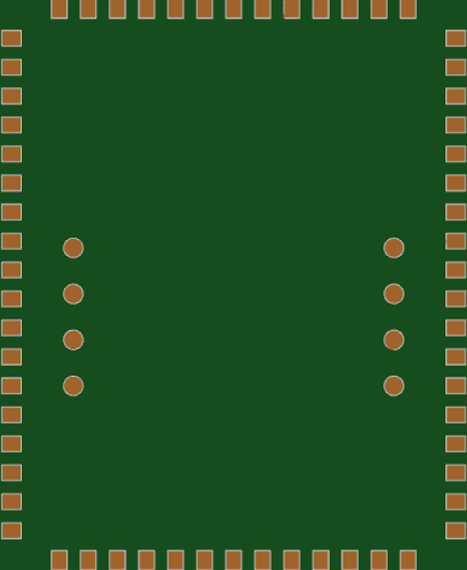

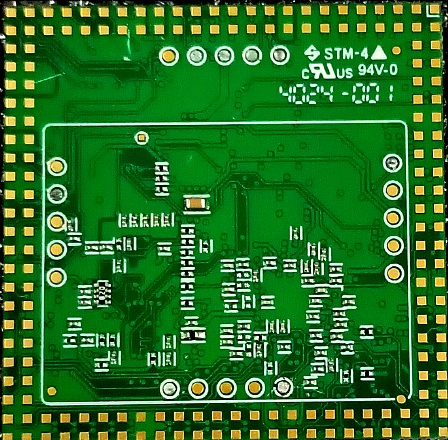

| 11. | PCB foot-print | Common PCB foot-print for HW compatibility |
